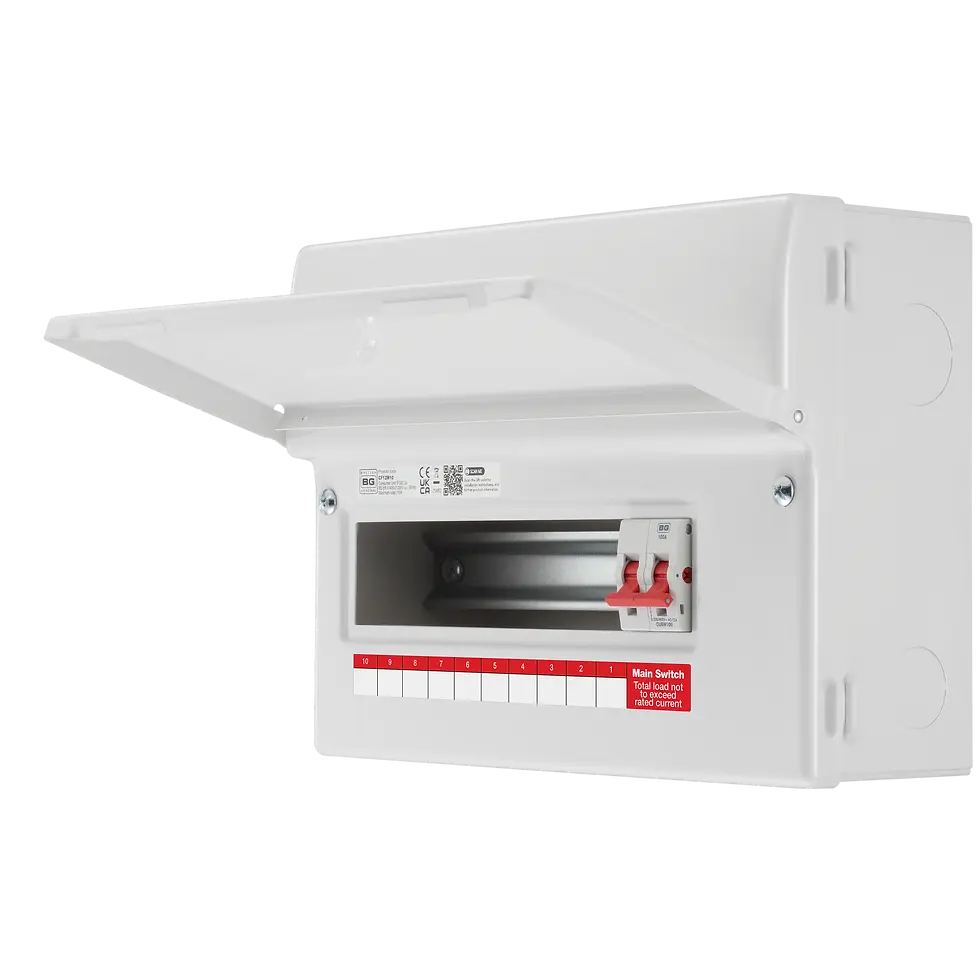

Consumer Unit 12 Module 10 Way Unpopulated with 100A Main Switch
Consumer Unit 12 Module 10 Way Unpopulated with 100A Main Switch
Features
• 100A main switch (fitted)
• Type 2 SPD - 1 module (pre-wired)
• Integrated spirit level
• Large rear knockouts (2 rows)
• Optional cable clamp included
• 4 - 20 ways
• 40mm knockouts in sides, top and base
• Backed out and retained terminal screws
Technical Specifications
Installation Method: Surface Mounted
Number of Phases: 1
Protection Options: MCB, RCBO, AFDD, RCD, SPD
IP Rating: IP2XC
Colour: White - RAL9016 (Traffic White)
Main Switch Rated Current: 100A
Rated Operational Voltage: 230V
Frequency: 50Hz
Rated & Insulation Voltage (Ui): 500V AC
Type of Supply Voltage: AC
Rated Impulse Withstand Voltage (Uimp): 4kV
Rated Condition Short Circuit Current (Icc): 16kA
Pollution Degree: 2
UV Stability: Yes
Main Switch Terminal Capacity: 35mm²
Main Switch Terminal Torque: 2.5Nm
Recommended Screwdriver Type: Pozidrive 2
Standards: Consumer Unit - BS/EN61439, Main Switch - EN/IEC 60947-3
Dimensions of product (12 module)
Height: 229.9 mm
Width: 316.4 mm
Depth: 115.9 mm
