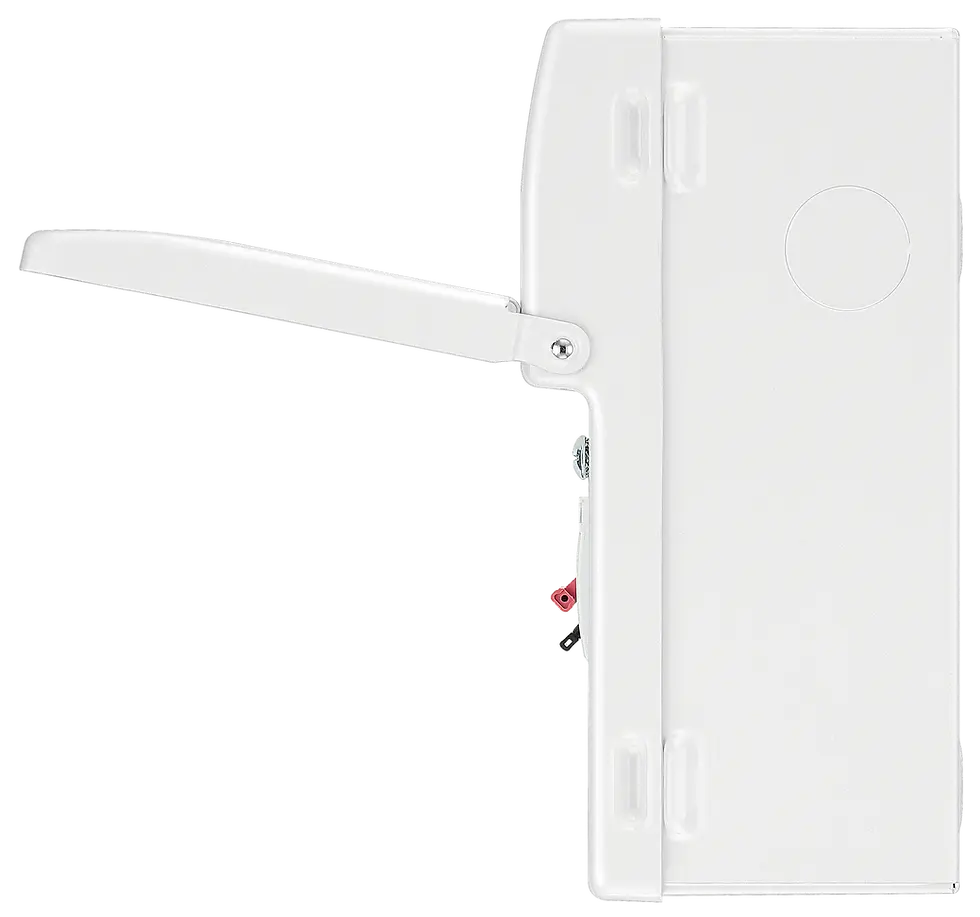

Consumer Unit 12 Module 8 Way Unpopulated with 100A Main Switch & 2 Cover Blanks

Consumer Unit 12 Module 8 Way Unpopulated with 100A Main Switch, 1 x Type 2 Surge Protection Device & 2 Cover Blanks

Technical Specifications
Standards: All metal consumer units comply with 18th Edition Wiring Regulations BS 7671, Consumer Unit: BS / EN 61439-3, Main Switch: EN / IEC 60947-3, SPD: IEC 61643-1 EN 61643 Type 2, MCB: IEC 60898-1 EN 6089-1
Max Current Rating: 100A
Operating Voltage: 230V AC 50Hz
Short Current Withstand: 16kA rms
IP Rating: IP2XC
Installation: Indoor
Material: Steel
Finish: White gloss (matches BG white accessories)
UV Stability: Yes
Cover Blanks: 2 or 4 cover blanks
Main Switch Terminal: 35mm² capacity
Main Switch Torque: 2.5Nm
SPD Terminal: 1.5-6mm
SPD Terminal Torque: L/N 1.2Nm PE 3Nm
MCB Terminal: 25mm max
MCB Terminal Torque: 2Nm

Dimensions
Fixing Centres: 31.6mm x 23.1mm x 11.6mm
Weight: 3.43kg
