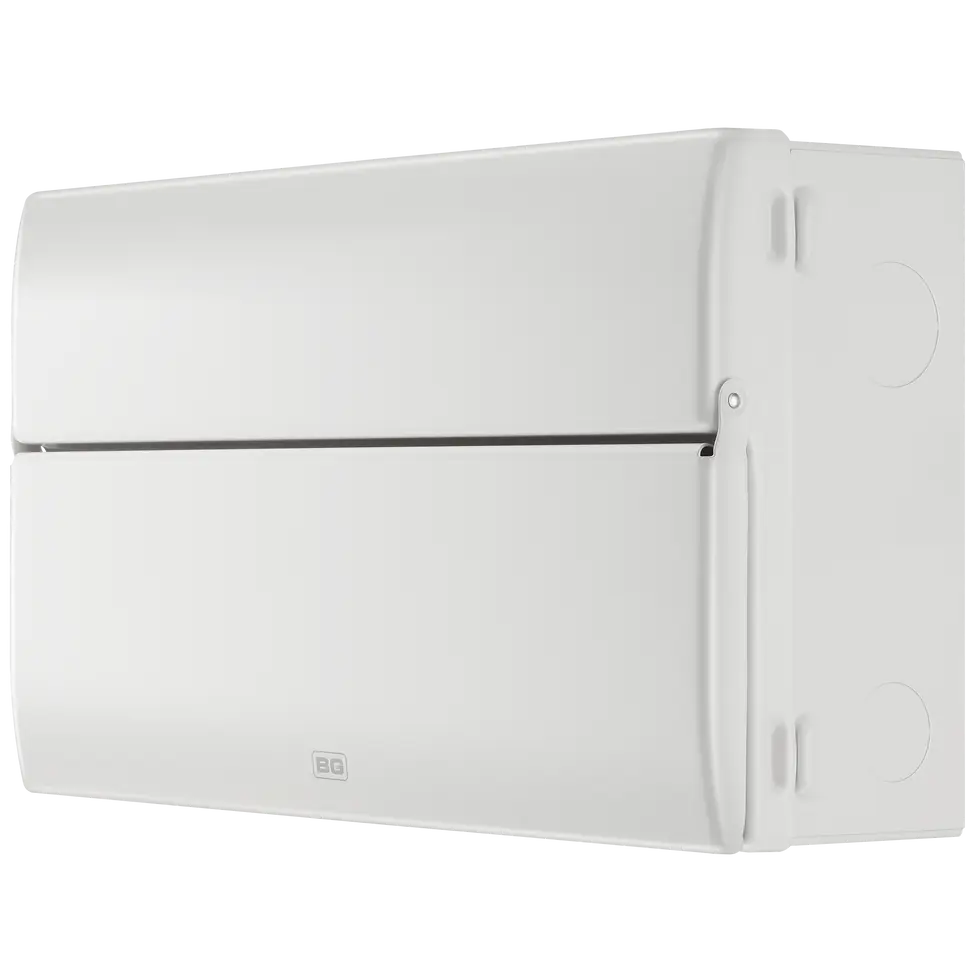

Consumer Unit 16 Module 10 Way Unpopulated with 100A Main Switch 2x100A 30mA RCD
Consumer Unit 16 Module 10 Way Unpopulated with 100A Main Switch & 2 x 100A 30mA RCD
Features
• 2 x 100A 30mA Type A RCD (fitted)
• 100A Main Switch
• Integrated spirit level
• Hi-integrity as standard
• Large rear knockouts (2 rows)
• Optional cable clamp included
• 10 - 16 ways
• 40mm knockouts in sides, top and base
• Backed out and retained terminal screws
Technical Specifications
Installation Method: Surface Mounted
Number of Phases: 1
Protection Options: MCB, RCBO, AFDD, SPD
IP Rating: IP2XC
Colour: White - RAL9016 (Traffic White)
RCD Rated Current: 100A
Main Switch Rated Current: 100A
Rated Operational Voltage: 230V
Frequency: 50Hz
Rated & Insulation Voltage (Ui): 500V AC
Type of Supply Voltage: AC
Rated Impulse Withstand Voltage (Uimp): 4kV
Rated Conditional Short Circuit Current (Icc): 16kA
Pollution Degree: 2
UV Stability: Yes
RCD Terminal Capacity: 35mm²
RCD Switch Terminal Torque: 2.5Nm
Main Switch Terminal Capacity: 35mm²
Main Switch Terminal Torque: 2.5Nm
Recommended Screwdriver Type: Pozidrive 2
Standards: Consumer Unit - BS/EN61439, Main Switch - EN/IEC 60947-3, RCD IEC/EN 61008-01
Dimensions of product (16 module)
Height: 229.9 mm
Width: 388.4 mm
Depth: 115.9 mm
