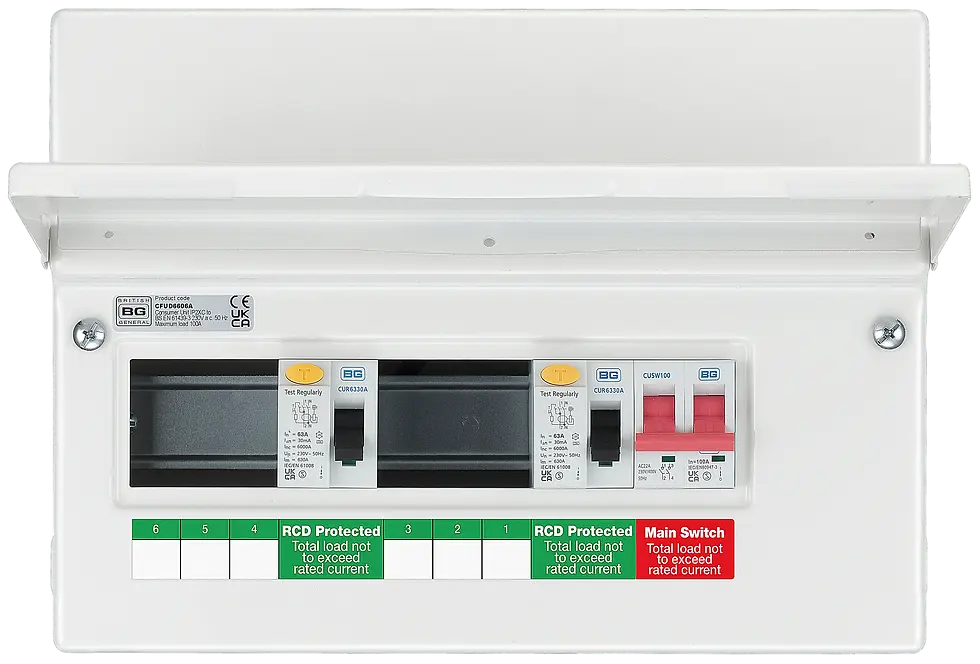

Consumer Unit 12 Module 6 Way Unpopulated with 100A Main Switch, 2 x 63A Type A
SKU: CFUD6606A
£62.06Price
Consumer Unit 12 Module 6 Way Unpopulated with 100A Main Switch, 2 x 63A Type A 30mA RCD & 2 Cover Blanks
Technical Specifications
Standards: All metal consumer units comply with 18th Edition Wiring Regulations BS 7671, Consumer Unit: BS EN 61439-3, Main Switch: EN / IEC 60947-3, RCD: EN / IEC 61008
Max Current Rating: 100A
Operating Voltage: 230V AC 50Hz
Short Current Withstand: 16kA rms
IP Rating: IP2XC
Installation: Indoor
Material: Steel
Finish: White gloss (matches BG white accessories)
UV Stability: Yes
Cover Blanks: Each unit supplied with 2x cover blanks
Main Switch Terminal: 35mm² capacity
Main Switch Torque: 2.5Nm
RCD Terminal: 35mm² capacity
RCD Torque: 63A: 2.5Nm, 80A: 2.5Nm, 100A: 2.5Nm
