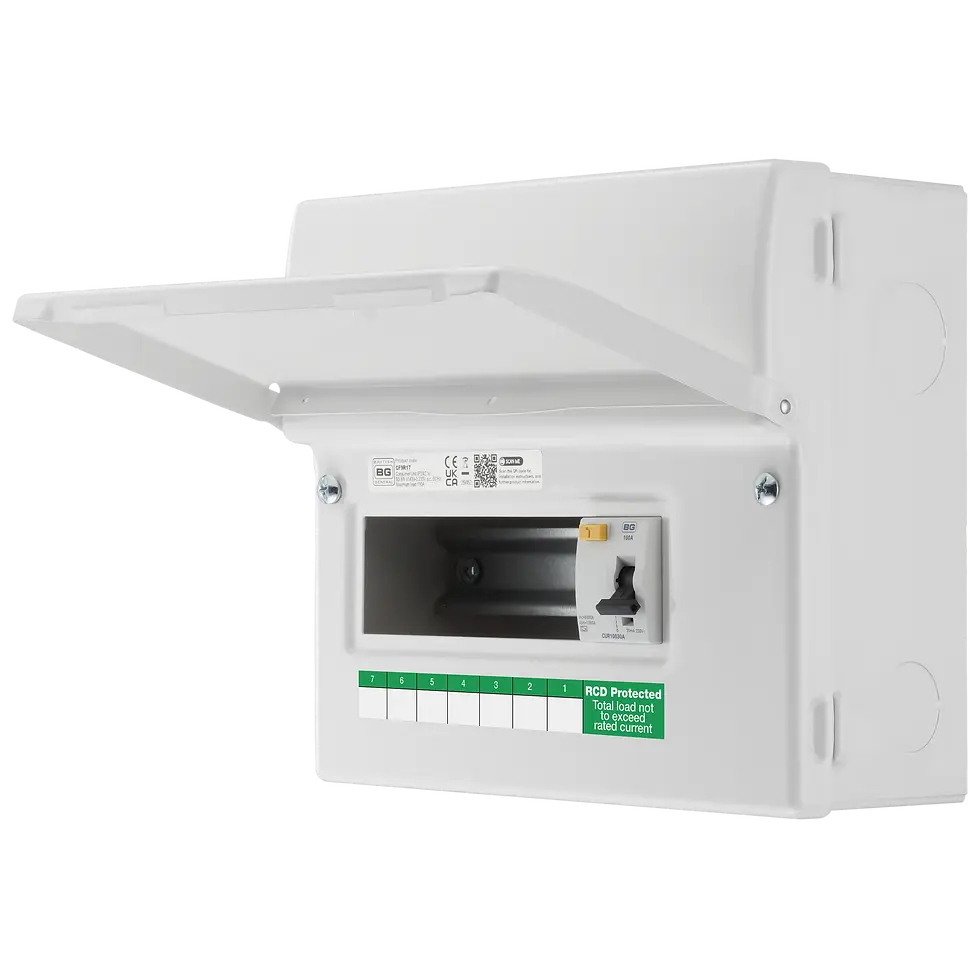

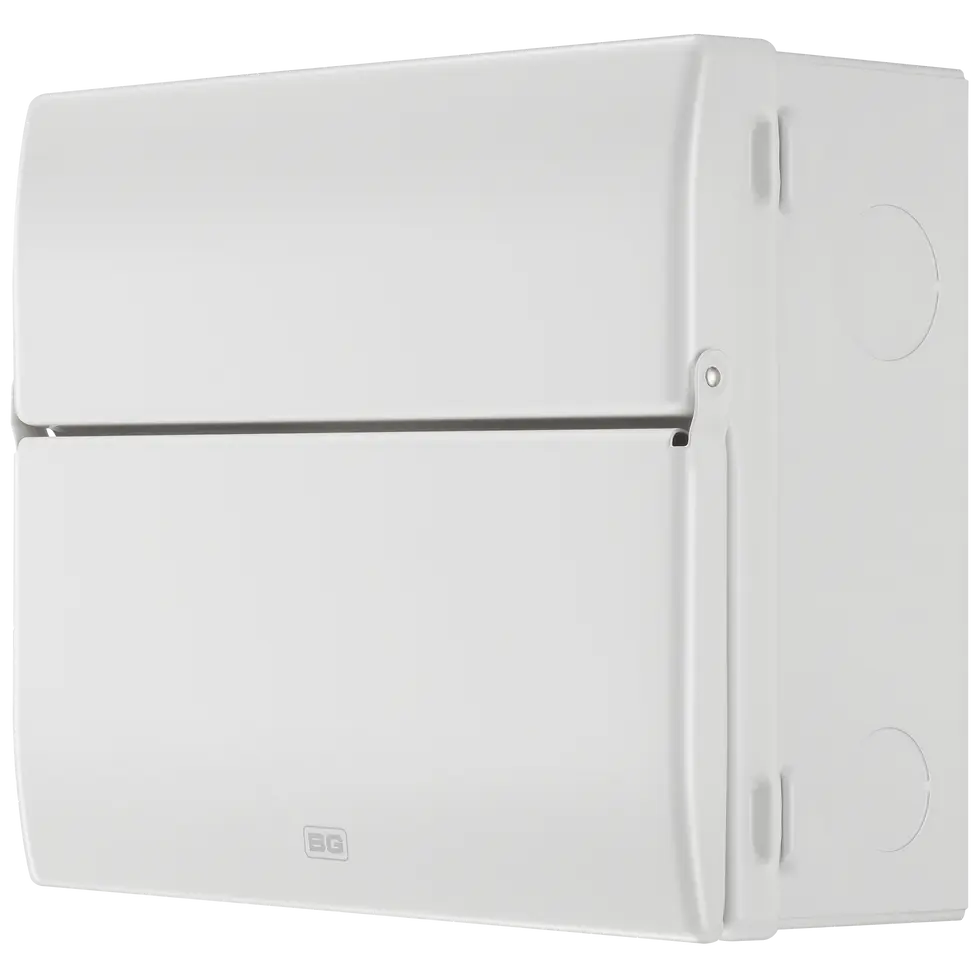

Consumer Unit 9 Module 7 Way Unpopulated with 1 x 100A 30mA RCD
Consumer Unit 9 Module 7 Way Unpopulated with 1 x 100A 30mA RCD
Features
• 100A Type A RCD (fitted)
• Integrated spirit level
• Large rear knockouts (2 rows)
• Optional cable clamp included
• 4-10 ways
• 40mm knockouts in sides, top and base
• Backed out and retained terminal screws
Technical Specifications
Installation Method: Surface Mounted
Number of Phases: 1
Protection Options: MCB, SPD
IP Rating: IP2XC
Colour: White - RAL9016 (Traffic White)
Main Switch Rated Current: 100A
Rated Operational Voltage: 230V
Frequency: 50Hz
Rated & Insulation Voltage (Ui): 500V AC
Type of Supply Voltage: AC
Rated Impulse Withstand Voltage (Uimp): 4kV
Rated Conditional Short Circuit Current (Icc): 16kA
Pollution Degree: 2
UV Stability: Yes
Main Switch Terminal Capacity: 35mm²
Main Switch Terminal Torque: 2.5Nm
Recommended Screwdriver Type: Pozidrive 2
Standards: Consumer Unit - BS/EN 61439, RCD IEC/EN 61008
Dimensions of product (9 module)
Height: 229.9 mm
Width: 262.4 mm
Depth: 115.9 mm
