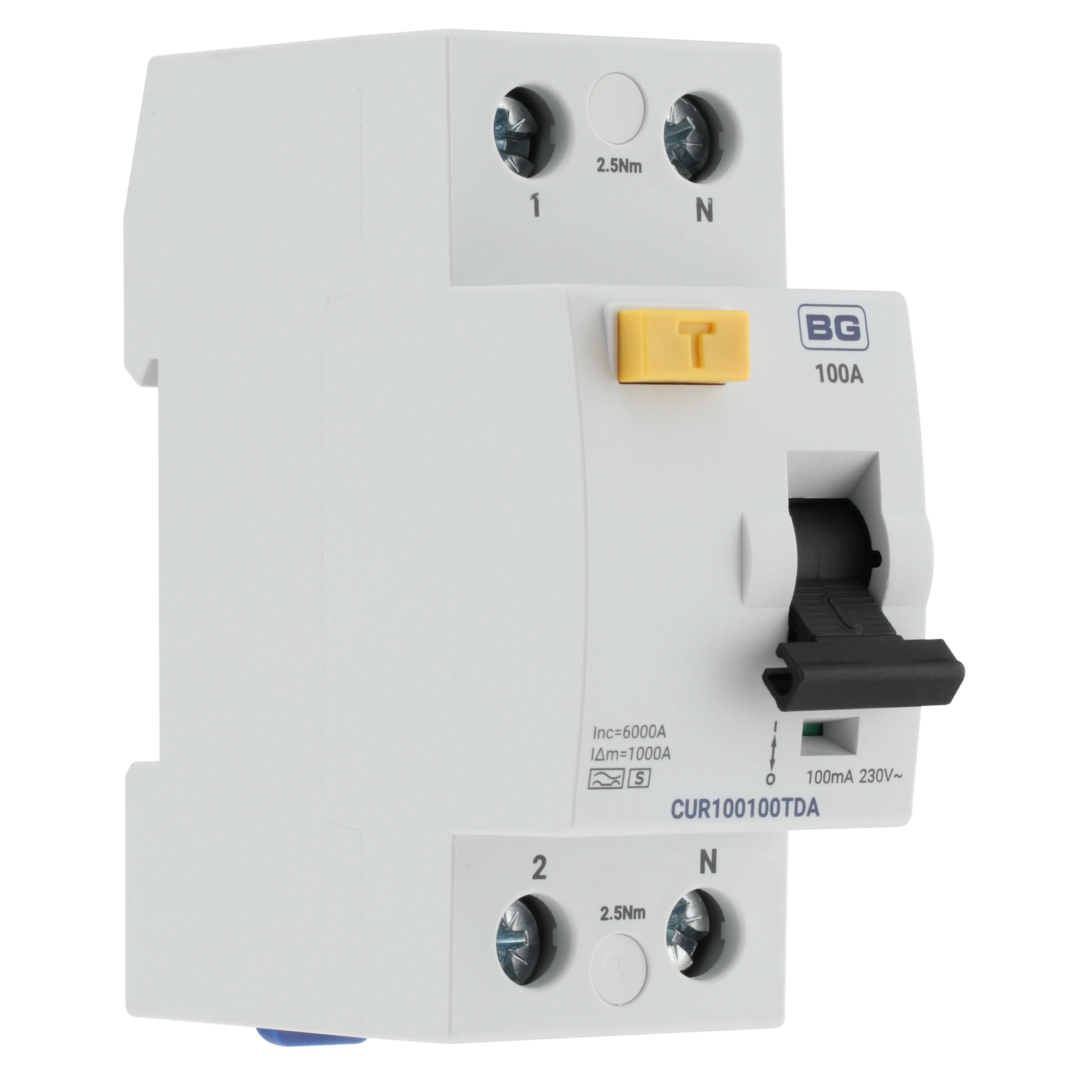

Bidirectional Time Delayed 100A RCD Type A Double Pole 100mA 2 Module

Features
• Bidirectional
• Double pole isolation
• BS7671 Amendment 4 compliant device
• Pollution degree 3 tested
• -25°C - +40°C operating temperature range
• 2 Module
• Type A
• Available in 40A - 100A

Technical Specifications (40A - 100A)
Bidirectional: Yes
Neutral Position: Right
Number of Poles: 2
Type of Pole: 1P+N
Fixing Mode: DIN Rail Type 35mm
Rated Operational Voltage Ue: 230/240V
Operating Temperature Range: -25°C - +40°C
Frequency: 50Hz
Type of Supply Voltage: AC
Rated Insulation Voltage: 500V
Max Operating Voltage: 264V
Rated Impulse Withstand Voltage:4kV
Rated Residual Operating Current: 30mA
RCD Type: Type A
Total Power Loss Under IN: 12.48W
Electric Endurance in Number of Cycles: 4000
Number of Mechanical Operations: 10000
Screw Terminal: Yes Pozidrive 2
Terminal Torque Settings: 2.5Nm
Max Cables: 35mm
Standards: IEC/EN 61008-1, IEC/EN

Dimensions of Product
Height: 88.5mm
Width: 35.6mm
Depth: 75.3mm
