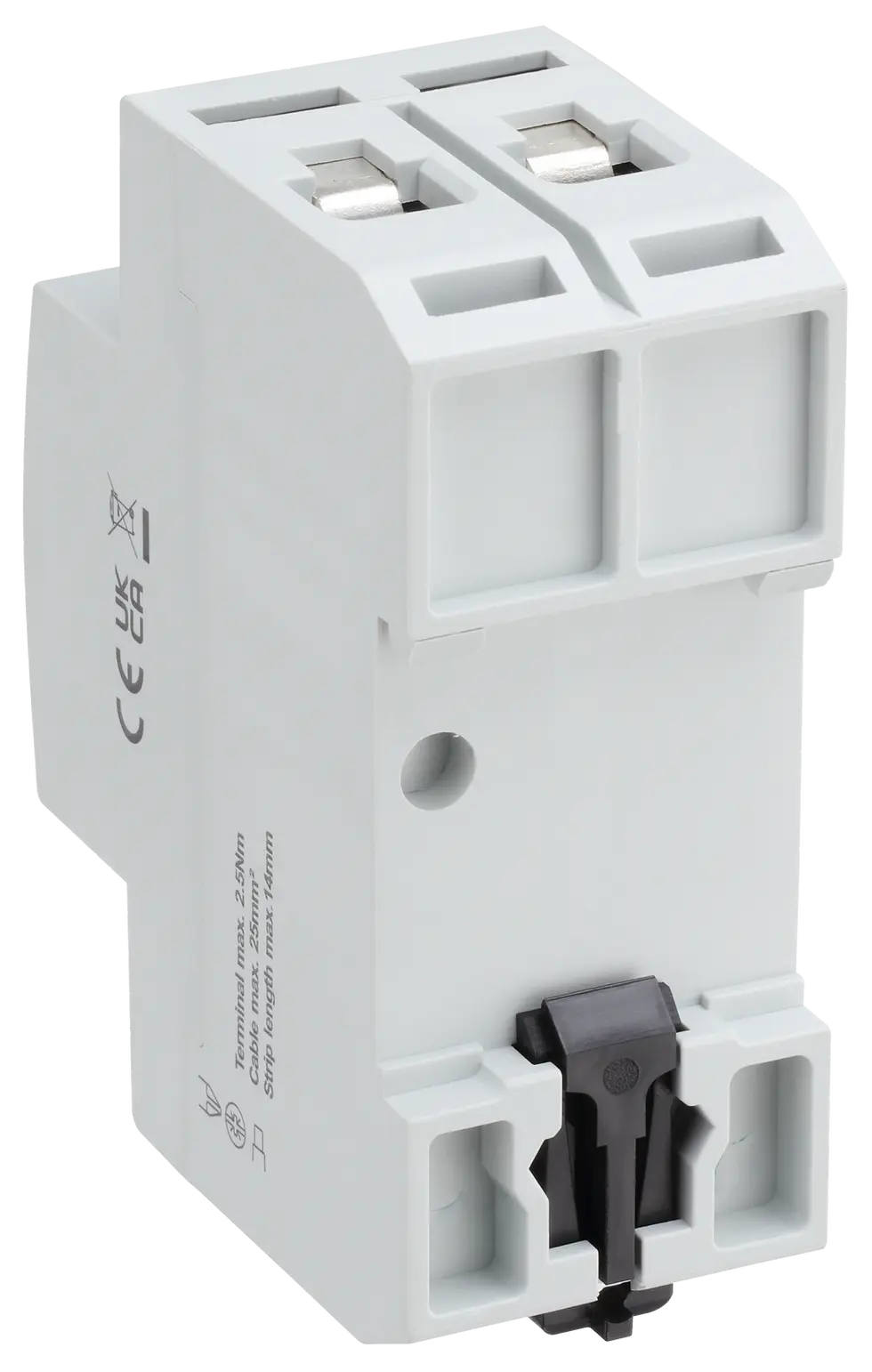

BIDIRECTIONAL 40A RCD TYPE A, 2POLE, 2MODULE

Features:
• Stylish modern profile, matches all other BG devices
• Positive contact status indicator
• Available in 40, 63, 80 & 100A with 30mA sensitivit
• Resistant to current surges, unwanted tripping excluded
• Lockable toggle switch
• Bidirectional
• -25°C - +40°C operating temperature range

Technical Specifications
Standard(s): IEC/EN 61008-01
Bidirectional: Yes
Neutral position: Right
Number of poles: 2
Type of pole: L & N
Fixing mode: DIN rail type 35mm
Rated Operational Voltage Ue: 230V
Operating temperature range: -25°C - +40°C
Frequency: 50Hz
Type of supply voltage: AC
Rated Insulation voltage: 500V
Max Operating Voltage: 264V
Rated impulse withstand voltage: 6kV
Rated residual operating current: 30mA
RCD Type: A
Electrical endurance in number of cycles: 2000
Number of mechanical operations: 1000
Screw terminal: Yes - Pozidrive 2
Terminal Torque: 2.5Nm
Max cable Capacity: 35mm
