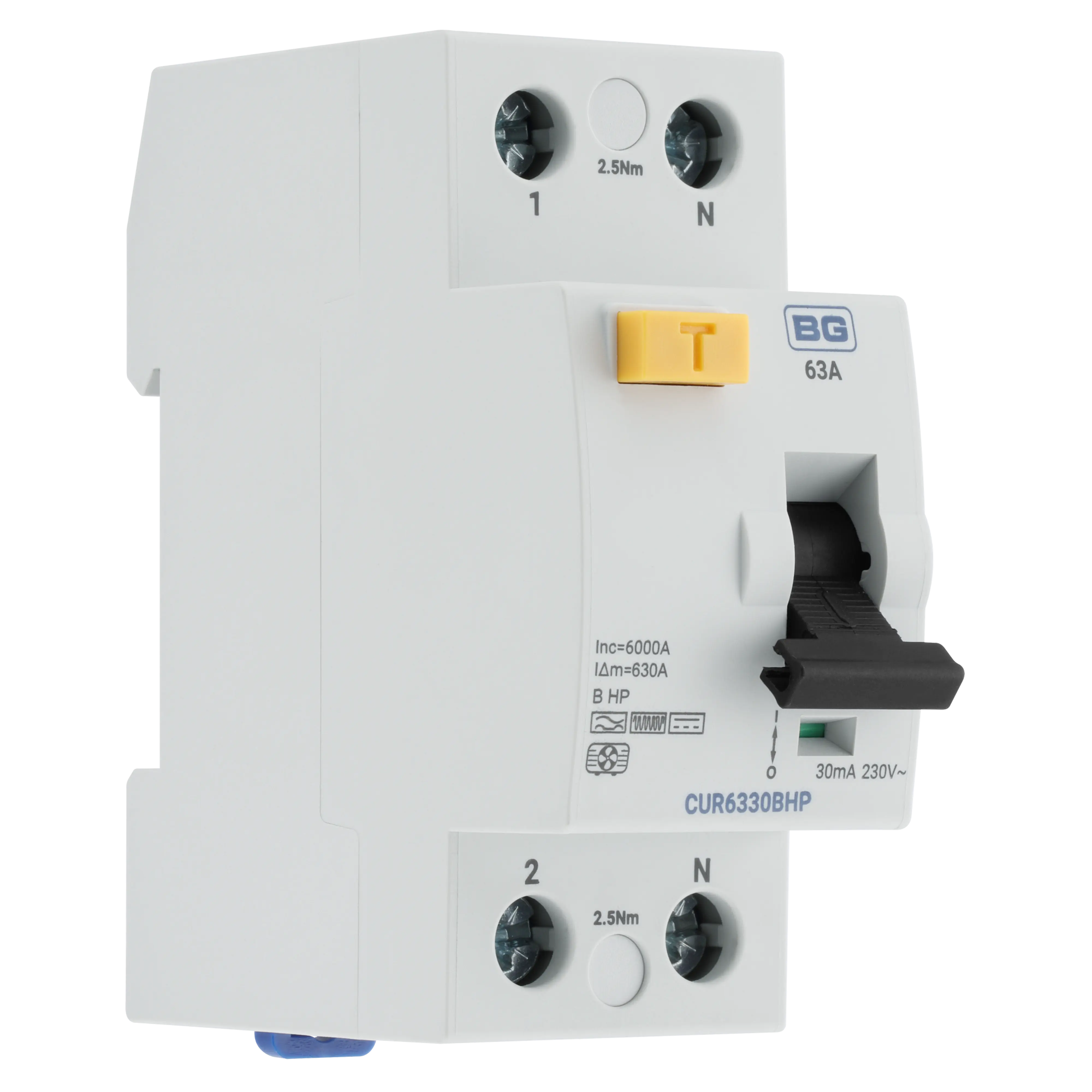

Bidirectional 63A RCD Type B Double Pole 30mA 2 Module - Heat Pump Specification

Features
• Bidirectional
• Double pole isolation
• BS7671 amendment 4 compliant device
• -25°C - +40°C operating temperature range
• 2 Module
• Type B+HP
• Available in 63A & 100A
• Incorporated inbuilt surge
• Detection capability: 20 kHz for high frequency currents
• Minimum trip threshold: 150mA for high-frequency current > 1kHz

Technical Specifications (63A & 100A)
Bidirectional: Yes
Neutral Position: Right
Number of Poles: 2
Type of Pole: 1P+N
Fixing Mode: DIN Rail Type 35mm
Rated Operational Voltage Ue: 230/240V
Operating Temperature Range: -25°C - +40°C
Supply Frequency: 50Hz
Type of Supply Voltage: AC
Rated Insulation Voltage: 500V
Max Operating Voltage: 264V
Rated Impulse Withstand Voltage: 4kV
Rated Residual Operating Current: 30mA
RCD Type (B-Type): Type B+HP
Total Power Loss Under IN: 12.48W
Electric Endurance in Number of Cycles: 4000
Number of Mechanical Operations: 10000
Screw Terminal: Yes Pozidrive 2
Terminal Torque Settings: 2.5Nm
Max Cables: 35mm
Standards: IEC/EN 61008-1, IEC/EN 61008-2-1, BS EN 62423

Dimensions of product
Height: 83 mm
Width: 35.9 mm
Depth: 75.8 mm
