Microwave Sensor Adjust

Features
Adjustable time delay
Suitable for LED and energy saving lamps
Power consumption 0.9W approx
Microwave sensor
Detection range 360 degrees ceiling
Adjustable ambient light
Detection range 180 degrees wall
Suitable for incorporation into light fittings
1 Year Guarantee

Technical Specifications
Ambient Light: 2 LUX, 5 LUX, 20 LUX, 50 LUX, 2000 LUX (Choice)
Barcode: 5012739642760
CE: Y
Colour: White
Company DUNS Number: 216156018
Country of Origin: China
Detection Distance: Ceiling = 1- 8M (Radius)adj Wall = 5-15M adj
Detection Moving Speed: 0.6 - 1.5m/s
Detection Range: Ceiling 360°/ Wall180°
Detection type: Microwave
Finish body: Matt
Fixings supplied with product: N
Frequency (Hz) max: 50
Frequency (Hz) min: 50
Greenbrook Guarantee (Years): 1
HF System: 5.8GHz CW Radar, ISM band
Hold Time: 5s, 30s, 1min, 5min, 10min, 20min, 30min (choice)
HS Code: 8543709099
Ingress Protection (IP): 20
Installation Height: Ceiling = 1.5 - 3.5M Wall = 2 - 8M
Installation method: Internal surface mount
Materials Main Body: Polycarbonate
Min Order Qty: 1
Operating Temperature Range max C: 40
Operating Temperature Range min C: -20
Package Product Weight gross (g): 60.5
Power Consumption: 0.9W

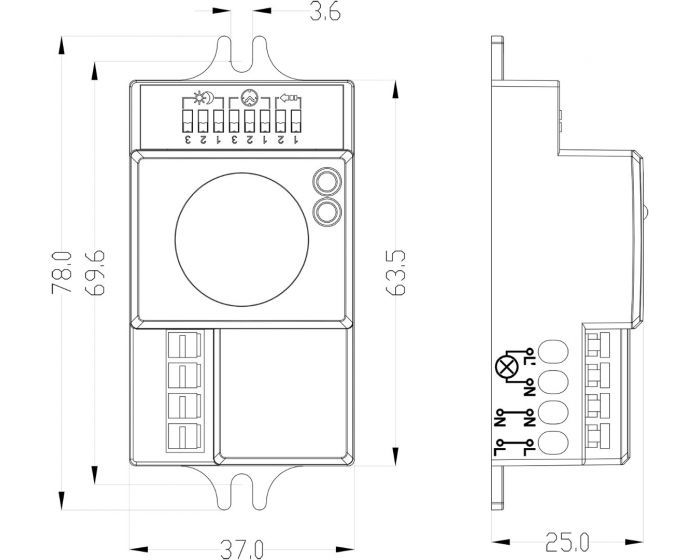

Product (only) Max. Depth (mm): 63.5
Product (only) Max. Height (mm): 25
Product (only) Max. Width (mm): 37
Product Weight net (g): 48
Rated Load: Max 1200W / Tungsten Max 300W /LED
Sales Pack Qty: 1
Standards: BS EN 60669
StatusCode: Active
UKCA: Y
Voltage (VAC) MAX (V): 240
Voltage (VAC) Min (V): 220
Voltage (VAC) Rated (V): 230
Wattage (W): Max 1200W / Tungsten Max 300W /LED
Working Humidity: <93%RH
Working Temperature: -20° - + 40°C
