Microwave Sensor 1-10v Dimmable

Features
Suitable for LED and energy saving lamps
1-10V Dimmable
Adjustable Detection Range
Ceiling 360 degrees Wall 180 degrees
Adjustable time delay
Adjustable ambient light
Microwave sensor
LEDs upto 600W
1 Year Guarantee

Technical Specifications
Ambient Light: 2 LUX, 5 LUX, 20 LUX, 50 LUX, 2000 LUX (Choice)
Barcode: 5012739642777
CE: Y
Colour: White
Company DUNS Number: 216156018
Country of Origin: China
Detection Distance: Ceiling = 1- 8M (Radius)adj Wall = 5-15M adj
Detection Moving Speed: 0.6 - 1.5m/s
Detection Range: Ceiling 360°/ Wall180°
Detection type: Microwave
Finish body: Matt
Fixings supplied with product: N
Frequency (Hz) max: 50
Frequency (Hz) min: 50
Greenbrook Guarantee (Years): 1
HF System: 5.8GHz CW Radar, ISM band
Hold Time: 5s, 30s, 1min, 5min, 10min, 20min, 30min (choice)
HS Code: 8543709099
Ingress Protection (IP): 20
Installation Height: Ceiling = 1.5 - 3.5M Wall = 2 - 8M
Installation method: Internal surface mount
Materials Main Body: Polycarbonate
Min Order Qty: 1
Operating Temperature Range max C: 40
Operating Temperature Range min C: -20
Package Product Max. Length (mm): 125
Package Product Max. Height (mm): 40
Package Product Max. Width (mm): 60
Package Product Weight gross (g): 81
Power Consumption: 0.9W

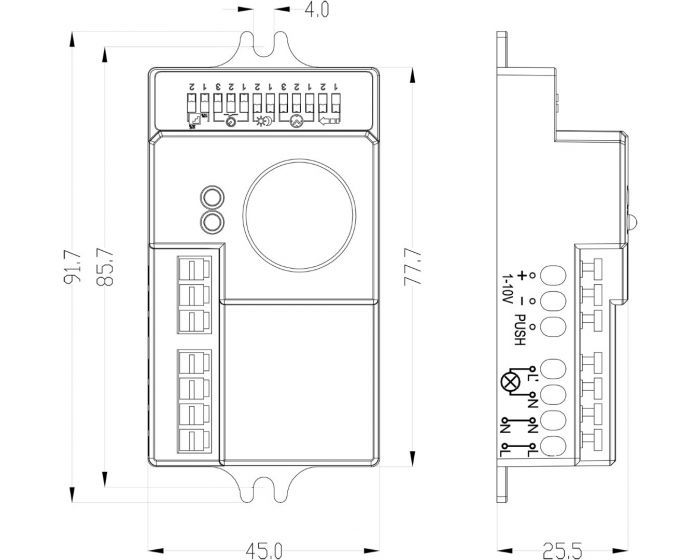

Product (only) Max. Depth (mm): 77.7
Product (only) Max. Height (mm): 25.5
Product (only) Max. Width (mm): 45
Product Weight net (g): 65
Rated Load: Max 600W TungstenLED
Sales Pack Qty: 1
Stand-by Dimming Level: 10s, 30s, 1min, 5min, 10min, 30min, +∞,0S (choice)
Standards: BS EN 60669
StatusCode: Active
UKCA: Y
Voltage (VAC) MAX (V): 240
Voltage (VAC) Min (V): 220
Voltage (VAC) Rated (V): 230
Wattage (W): Max 600W TungstenLED
Working Humidity: <93%RH
Working Temperature: -20° - + 40°C
