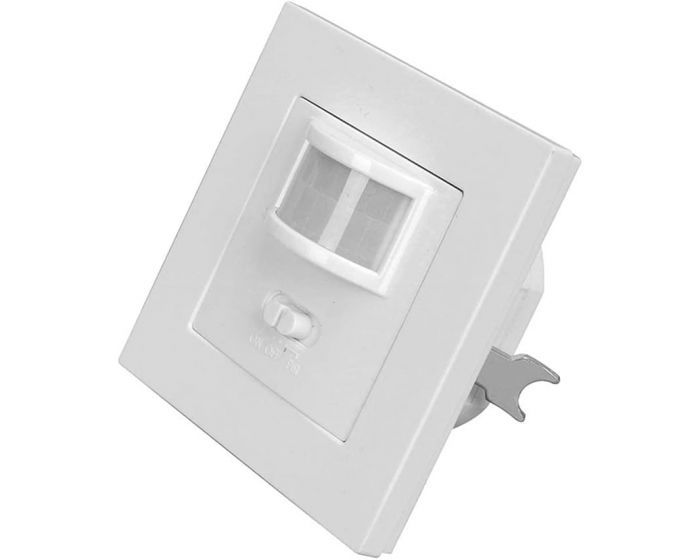

InfraRed Motion Sensor Wall Switch

Features
Suitable for LED and energy saving lamps
Detection range 160 degrees
Adjustable time delay and ambient light
Built in replaceable fuse
PIR motion sensor
No neutral required
Replaces existing light switch
Fits a standard 25mm back box
Suitable for wall mounting
1 year Guarantee

Technical Specifications
Ambient Light: <3-2,000 LUX (adj)
Barcode: 5012739642685
CE: Y
Colour: White
Company DUNS Number: 216156018
Country of Origin: China
Detection Distance: 9M max (<24°C)
Detection Moving Speed: 0.6 - 1.5m/s
Detection Range: 160°
Detection type: PIR
Finish body: Matt
Fixings supplied with product: N
Frequency (Hz) max: 50
Frequency (Hz) min: 50
Fuse Type: 3A 20 X 5 mm
Greenbrook Guarantee (Years): 1
HS Code: 8543709099
Ingress Protection (IP): 20
Installation Height: 1 - 1.8M
Installation method: Recessed switch and socket box mount
Materials Main Body: Polycarbonate
Min Order Qty: 1
Operating Temperature Range max C: 40
Operating Temperature Range min C: -20
Package Product Max. Length (mm): 115
Package Product Max. Height (mm): 52
Package Product Max. Width (mm): 85
Package Product Weight gross (g): 97.5
Power Consumption: 0.5W
Product (only) Max. Depth (mm): 44.1
Product (only) Max. Height (mm): 80
Product (only) Max. Width (mm): 80
Product Weight net (g): 72.7
Rated Load: 0- 500W Tungsten, 5 200W /LED
Sales Pack Qty: 1
Standards: BS EN 61058-1
StatusCode: Active
Time Delay: Min 10 Sec ± 3 Sec Max 7 Min ± 2 Min
UKCA: Y
Voltage (VAC) MAX (V): 240
Voltage (VAC) Min (V): 220
Voltage (VAC) Rated (V): 230
Wattage (W): 0- 500W Tungsten, 5 200W /LED
Working Humidity: <93%RH
Working Temperature: -20° - + 40°C
