40A Double Pole Contactor N/O 230V AC Coil 2 Module
Features
• Double pole isolation
• BS7671 Amendment 4 compliant device
• Pollution degree 3 tested
• -25°C to +40°C operating temperature range
• Available in 1 module (20A) and 2 module (40A)
Technical Specifications
Operational Current: 20A & 40A
Number of Poles: 2
Type of Contact: Normally Open (N/O)
Fixing Mode: 35mm DIN Rail
Operating Temperature Range: -25°C to +40°C
Rated Operational Voltage (Ue): 230V
Frequency: 50/60Hz
Supply Voltage: AC
Rated Insulation Voltage: 500V
Rated Impulse Withstand Voltage:4kV
Mechanical Operating Cycles: 1000000
Electrical Operating Cycles: 30000
Torque Setting: Coil: 0.6Nm, Terminal: 1.2Nm
Max Cable Capacity: Coil: 2.5mm², Terminal: 10mm²
Noise level: <30dB
Standards: IEC/EN60947-4-1, IEC/EN61095

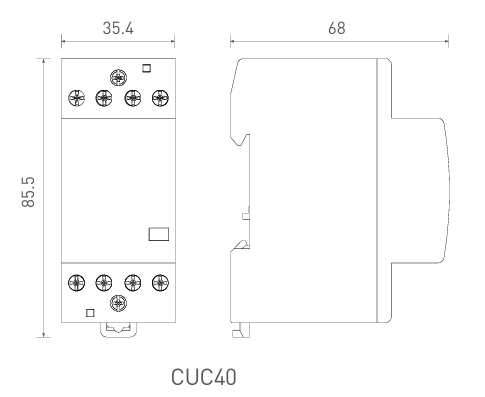

Dimensions of Product (CUC40)
Height: 85.5 mm
Width: 35.4 mm
Depth: 68 mm
